Contours

Krieger Barrels offers a wide variety of both standard and custom barrel contours for bolt action rifles as well as AR10, AR15, M1 Garand, M1A/M14 and service rifles. Whether you would like to choose from one of our standard Sporter, Match Taper, Palma profile or straight contours, or if you would like to copy your existing barrel's profile or create your own custom profile, Krieger Barrels has you covered. If you don't see the profile you need for your custom rifle build or your replacement barrel give us a call or submit your question here.

Stay service rifle competition legal with our AR15 DCM profile or upgrade to our heavy Varmatch barrels and add weight and length to your AR15 as well as custom lengths and muzzle diameters. Our AR10 DPMS heavy contour barrels are available in multiple calibers as well as custom lengths and muzzle diameters while our M110 is kept NRA service rifle match legal in .308. Our M1 Garand and M1A barrels are available in multiple service rifle competition patterns. Get your Springfield M1903 or M1903-A3 in parkerized chrome moly as a .308 or .30-06.

Most of these contours have multiple available options and services, from fluting and parkerizing to fitting, assembly and chambering.

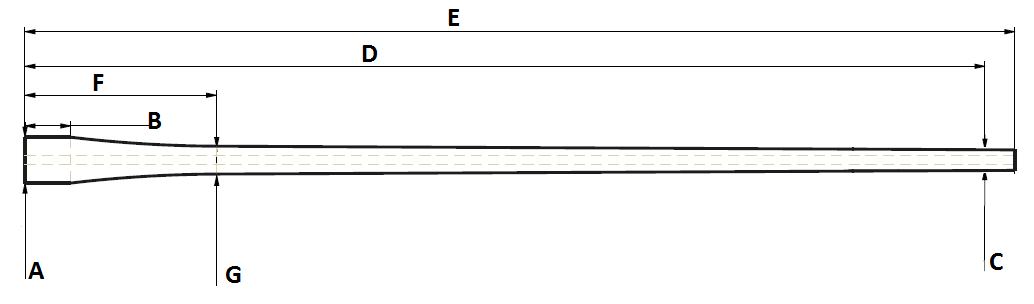

    Sporter Contours

    Click to view:

    ContourBreech Dia. (A)Breech Length (B)Muzzle Dia. (C)Finish Length (D)Blank Length (E)Neck Length (F)Neck Dia. (G)Weight (LBS)
    #0-Featherweight1.2501.250.56022.00276.000.7602.0
    #1- Light Sporter1.2502.250.56024.00276.000.7602.5
    #2-Standard Sporter1.2502.750.60024.00276.000.8002.8
    #3-Medium Sporter1.2502.750.63024.00276.000.8303.0
    #4-Heavy Sporter1.2502.750.67026.00276.000.8703.5
    #5-Bull Sporter1.2502.750.70026.00276.000.9004.0
    #5-Bull Sporter PLUS1.2502.750.70026.00276.000.9404.0
    Rem Varmint1.2502.200.83026.00274.700.9604.5
    #6-Heavy Bull Sporter1.2502.750.75026.00276.001.0004.5

    * Weight shown is the approximate weight un-chambered.

    Additional Bolt Barrel Information:CalibersTwist RatesServices

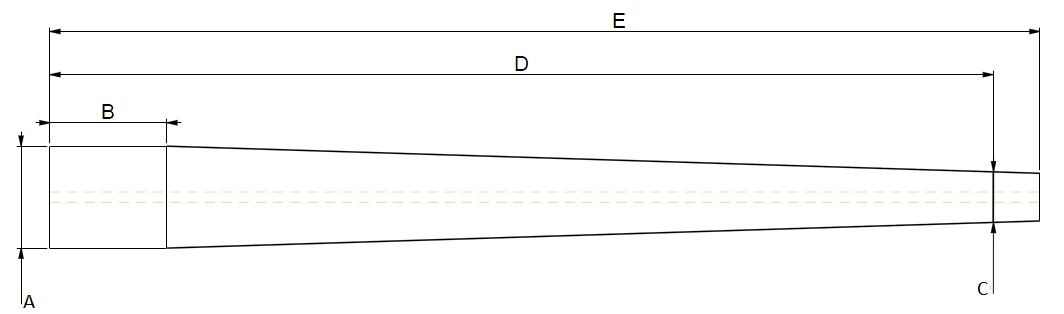

    Match Contours

    Click to view:

    ContourBreech Dia. (A)Breech Length (B)Muzzle Dia. (C)Finish Length (D)Blank Length (E)Weight (LBS)
    #7-Light Target1.2002.750.75026.00275.5
    #8-Standard Target1.2002.750.82026.00276.0
    #20-Benchrest Short1.2004.500.90023.00245.2
    #18-Light Varmint1.2005.000.87528.00296.5
    #9-Heavy Target1.2502.750.87526.00276.5
    #10-Heavy Bull Target1.2502.750.93026.00277.0
    #19-Hunter1.2504.000.75026.00276.0
    #17-Heavy Varmint1.2505.000.90028.00297.0
    M241.2002.000.90026.00276.0

    * Weight shown is the approximate weight un-chambered.

    Additional Bolt Barrel Information:CalibersTwist RatesServices

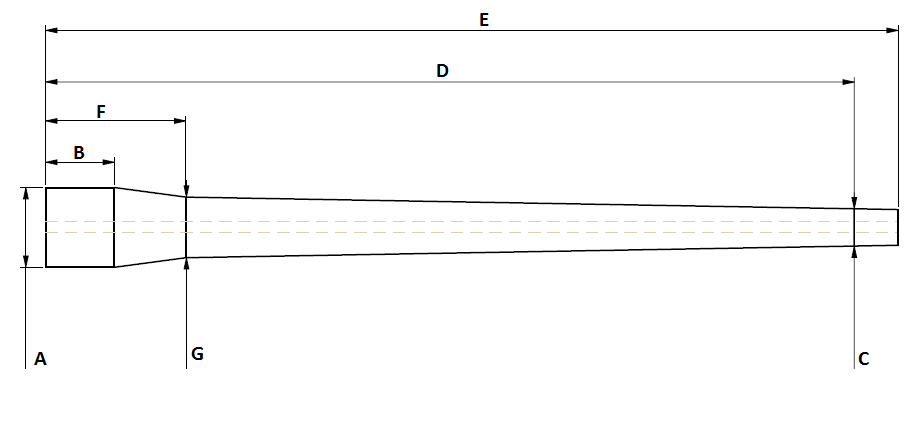

    Palma Contours

    Click to view:

    ContourBreech Dia. (A)Breech Length (B)Muzzle Dia. (C)Finish Length (D)Blank Length (E)Neck Length (F)Neck Dia. (G)Weight (LBS)
    #16-Light Palma1.2502.500.75030.00315.000.9004.5
    #15-Standard Palma1.2502.500.82030.00315.000.9205.5
    #14-Heavy Palma1.2502.500.90030.00315.001.0006.5

    * Weight shown is the approximate weight un-chambered.

    Additional Bolt Barrel Information:CalibersTwist RatesServices

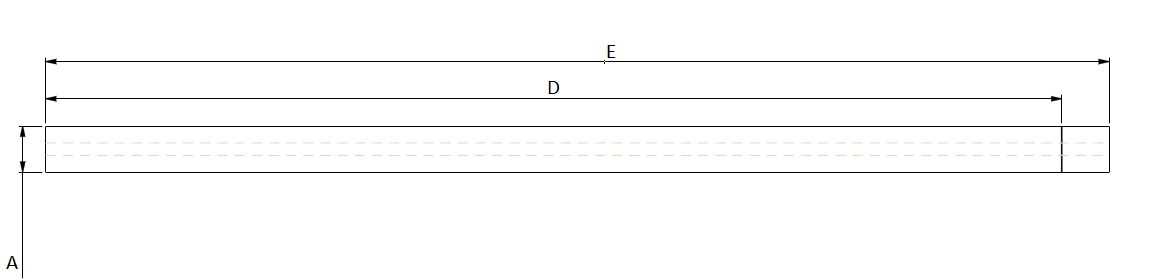

    Straight Contours

    Click to view:

    ContourBreech Dia. (A)Muzzle Dia. (C)Finish Length (D)Blank Length (E)Weight (LBS)
    #11-SS Straight Blank1.2501.25028.002910.0
    #11-CM Straight Blank1.3001.30028.002910.0
    #12-SS Oversize OD1.4501.45028.002913.0
    #12-CM Oversize OD1.4501.45028.002913.0
    #13-50 BMG2.0002.00036.003732.0

    * Weight shown is the approximate weight un-chambered.

    Additional Bolt Barrel Information:CalibersTwist RatesServices

    If your are looking to replace your existing barrel but it doesn't match any of our standard contours exactly or you are not sure of all the proper dimensions we can make a new barrel with the same contour as your original barrel. Just send us the barrel and we will match the contour for you. Ask us about it.

    If the barrel you are looking for doesn't match any of our standard contours exactly, we can create a custom contour to your specifications. This contour must meet our own strict minimum contour requirements for safety. Beyond the safety requirements we are quite flexible in the contours we can provide and can increase the level of precision on ground diameter dimensions. If you are looking to get a standard barrel type (i.e. Sporter, Match, Palma) and just wish to substitute some of the standard catalog dimensions for different ones, ask us about it here..

    Click to view:

    Contour TypeLengthWeight*Notes:Price
    M1 Garand GI23.3 IN2.75 LBSMil. Spec. John C. Garand Match/CMP Legal$370
    M1 Garand Heavy23.3 IN3.5 LBSHeavier than standard GI Contour. Requires wood removal from forearm and upper handguard. NRA Service Rifle Match legal.$370
    M1A Medium22 IN2.8 LBSStandard US Marines Medium DMR / M14 Pattern.$370
    M1A Medium Bush18.5 IN2.75Similar in contour to our full length "Medium Pattern" barrel with shortened finish length.$370
    M1A Heavy22 IN3.5 LBSHeavier than Med. Bush / M14 Pattern, with 1.1" breech diameter extended. NRA Service Rifle Match legal.$370
    M1903243 LBSSemi-Finished: with threads, breech cone, and extractor cut. Front sight area machined to GI specs and ready for your sight.$400
    M1903-A3243 LBSSemi-Finished: with threads, breech cone, and extractor cut. Front sight area machined to GI specs and ready for your sight.$400

    * Weight shown is the approximate weight un-chambered.

    Additional M1G, M1A, M1903 Information:CalibersTwist RatesServices

    Click to view:

    Contour TypeLengthMuzzle DiamterWeight*Notes:Price:
    Varmatch 26 IN26.0 IN0.812 IN4.75 LBSHeavier than service rifle. Gas block grind: .937" diameter, 1" in length; gas block included, no charge. Legal for NRA "Match Rifle", but not "Service Rifle" competition. Fluting available.$370
    Varmatch 26 IN26.0 IN0.920 IN5.25 LBSThis contour adds weight and rigidity with a larger muzzle diameter. Gas block grind: .937" diameter, 1" in length; gas block included, no charge. Legal for NRA "Match Rifle Competition". Fluting available.$370
    Varmatch 28 IN28.0 IN0.812 IN5.0 LBSThis contour adds two inches to the length of the gas system, requires extended gas tube. Gas block grind: .937" diameter, 1" in length; gas block included, no charge. Legal for NRA "Match Rifle Competition". Fluting available.$390
    Varmatch 28 IN28.0 IN0.920 IN5.5 LBSHeaviest AR-15 contour with large diameter muzzle and extended barrel length. Gas block grind: .937" diameter, 1" in length; gas block included, no charge. Legal for NRA "Match Rifle Competition". Fluting available.$390
    Varmatch Custom Contour20 - 26, 28.0 IN0.750 - 0.920 INVariableShooter can pick length between 20 and 26 inches and specify muzzle diameter. Up to 26 IN takes standard length gas tube. Gas block grind: .937" diameter, 1" in length; gas block included, no charge. Legal for NRA "Match Rifle Competition". Fluting available.$370 - $450
    DCM Pre Ban20.0 IN0.730 IN3.5 LBSStandard H-Bar DCM Contour. NRA Service Rifle Competition Legal. Includes threaded muzzle. User must know and observe all applicable local laws. Fluting available (but not permitted for service rifle competition).$320
    DCM Post Ban20.0 IN0.730 IN3.5 LBSStandard H-Bar DCM Contour. NRA Service Rifle Competition Legal. Fluting available (but not permitted for service rifle competition).$320
    Carbine16.5 IN0.725 IN2.75 LBS16.5 IN AR-15 carbine contour. Fluting available.$320

    * Weight shown is the approximate weight un-chambered

    Additional AR-15 Information:CalibersTwist RatesServices

    Click to view:

    Contour TypeLengthMuzzle DiamterWeight*Notes:Price:
    AR-10 DPMS Custom Contour20 - 26 IN0.750 - 0.920 INVariableGas block grind: .937" diameter, 1" in length; low profile gas block included, no charge. Shooter can pick length between 20 and 26 inches and specify muzzle diameter. "Match Rifle Competition" legal. Fluting available.$430
    M11020.0 IN0.850 IN4.00 LBSStandard M110 Service Rifle Pattern. Gas block grind: .875" diameter, 2" in length. Available in .308 Caliber. NRA Service Rifle Competition Legal. Fluting available (but not permitted for service rifle competition).$405

    * Weight shown is the approximate weight un-chambered

    Additional AR-10 Information:CalibersTwist RatesServices
